Description

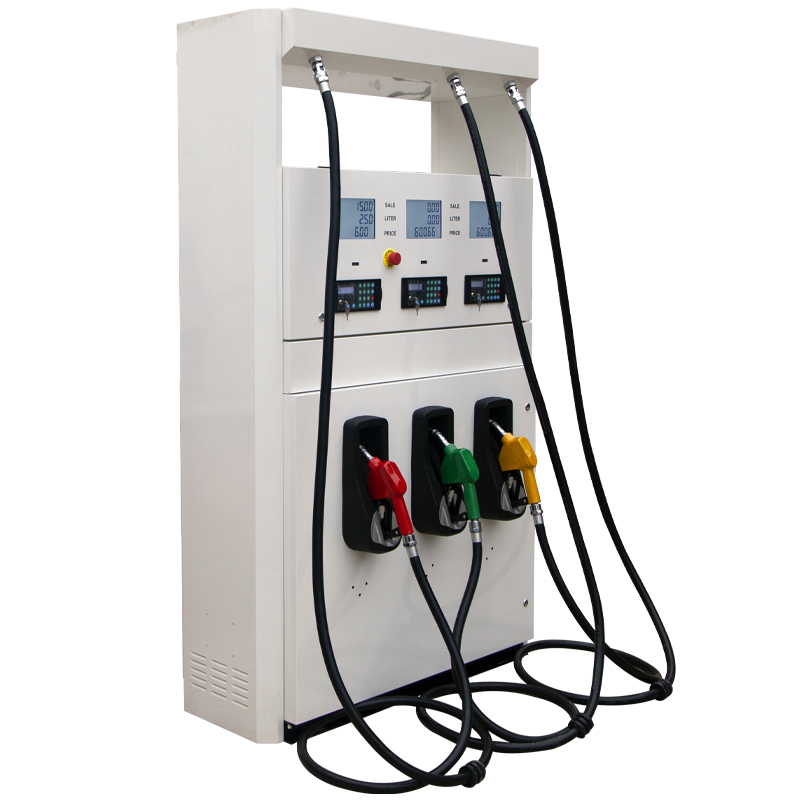

Fuel dispenser with 6 Hose, can be used for 3 product.

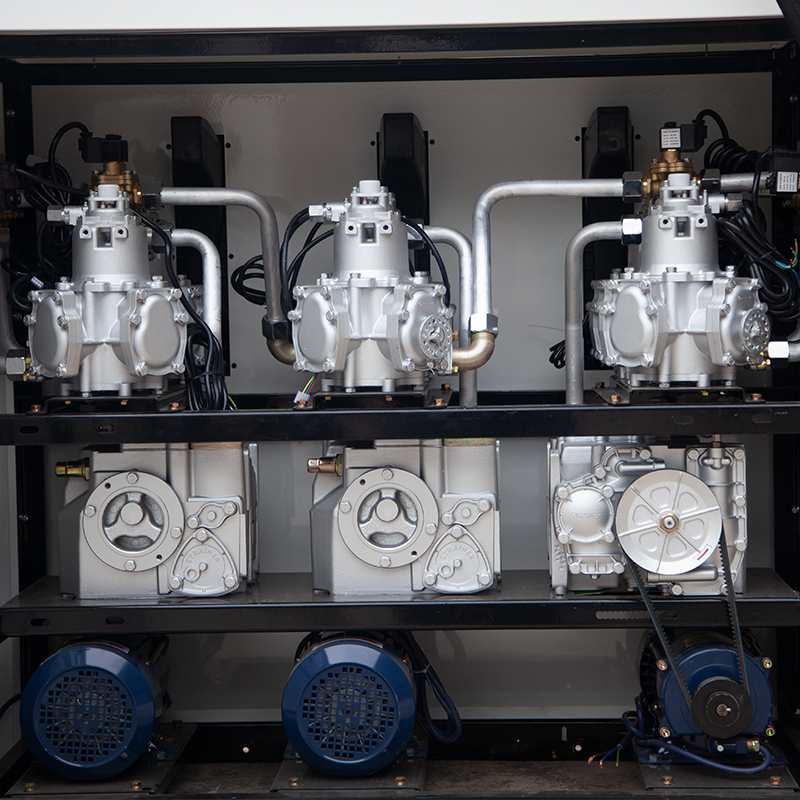

3 x 220V Ex-proof Motor
3 x tatsuno Pumps
6 x tatsuno Flow Meter
6 x 886 LCD Displays
3 x Motherboard
6 x Totalizer
Power: AC220V, 50Hz
Flow Rate: 5-50L/Min
Gross weight: 425kg
3/4" nozzle & 4 meter hose pipe
Dimension: 1320*560*2150(mm)
Brilliance series
·The Brilliance series fuel dispensers are highly suitable for gas stations, delivering accurate oil output to ensure precise fuel dispensing and featuring a long service life for reliable performance.
·They offer flexible configuration with 4 - 8 nozzles optional, meeting diverse fueling needs of different gas station setups.
·For enhanced operational convenience and monitoring, GPRS functionality can be added to the Brilliance series fuel dispensers.
Configuration optional
| Model | Nozzle | Pump | Display | Flow Rate |
| ZH - B212B/G/T | 2 | 1 | 2 | 5 - 50L/5 - 80L |
| ZH - B222B/G/T | 2 | 2 | 2 | 5 - 50L/5 - 80L |
| ZH - B424B/G/T | 4 | 2 | 4 | 5 - 50L/5 - 80L |
| ZH - B636B/G/T | 6 | 3 | 6 | 5 - 50L/5 - 80L |
| ZH - B848B/G/T | 8 | 4 | 8 | 5 - 50L/5 - 80L |
