Description

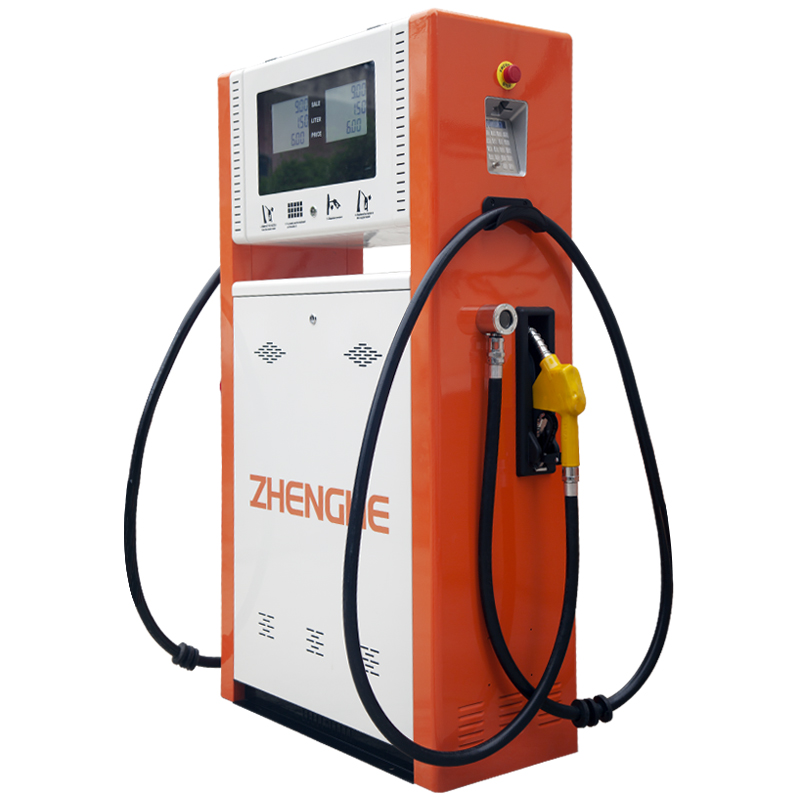

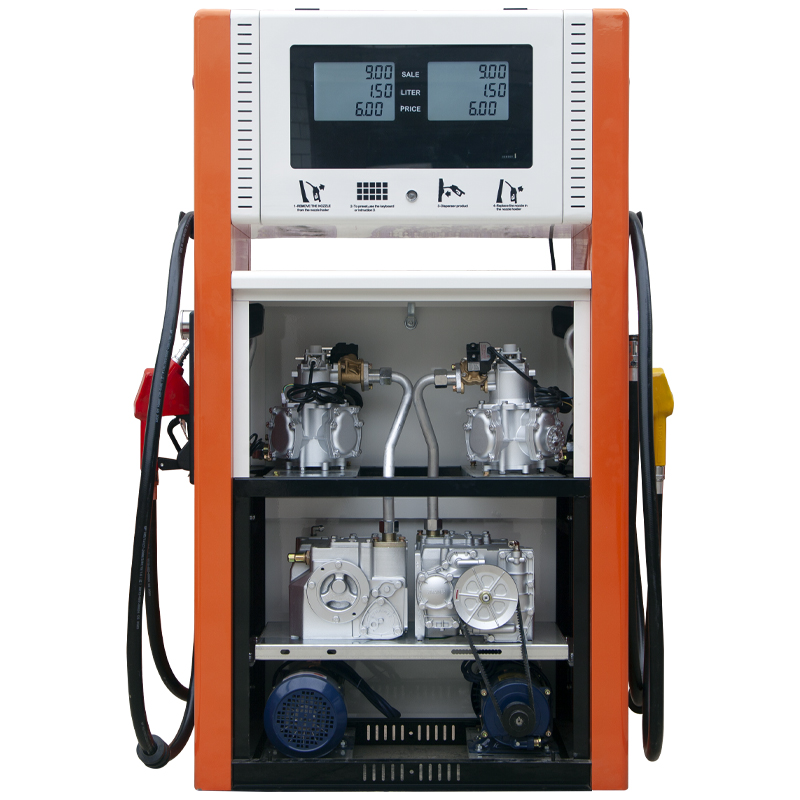

Fuel dispenser with 2 Hoses, can be used for 2 products.
2 x Ex-proof Motor

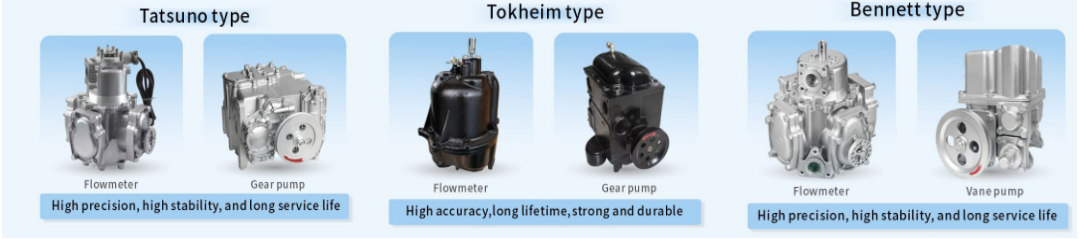

2 x Tokheim pump
2 x Tokheim Flow meter
2 x Solenoid Valves
4 x LCD Displays
2 x Keypads
Hose and Nozzle size: 3/4"
Flow Rate: 5 - 50L/min
Power: 2.5KW
Voltage: AC220V, 50Hz
Weight: 280kg
Dimensions: 1020x440x1650(mm)
Intelligent series
·Core Performance: The intelligent series fuel dispenser is a high-quality, efficient fuel supply device with reliable performance, long service life and accurate oil output.
·Operational Advantage: Its easy-to-operate design allows users to finish fuel dispensing effortlessly.
·Intelligent Value: Supporting GPRS addition for remote monitoring, it boosts operational efficiency and intelligence, ideal for various fuel supply needs.
Configuration optional
| Model | Nozzle | Product | Pump | Display | Flow Rate |
| ZH - I1111B | 1 | 1 | 1 | 1 | 5 - 50L/5 - 80L |
| ZH - I1111G | 1 | 1 | 1 | 1 | 5 - 50L/5 - 80L |
| ZH - I1111T | 1 | 1 | 1 | 1 | 5 - 50L/5 - 80L |
| ZH - I2222B | 2 | 2 | 2 | 2 | 5 - 50L/5 - 80L |
| ZH - I2222G | 2 | 2 | 2 | 2 | 5 - 50L/5 - 80L |
| ZH - H2222T | 2 | 2 | 2 | 2 | 5 - 50L/5 - 80L |
