Elite series-Huixian Zhenghe Machinery Equipment Co., Ltd

Elite series Id：ZH-E Place of origin：Henan

The Elite series fuel dispenser is an ideal choice for gas stations. It offers customizable logo service to align with your brand identity, and supports multiple voltage options (110V/220V/380V) for flexible use. Additionally, you can opt for Bennett, Tatsuno, or Tokheim configurations to meet specific operational needs.

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

Description

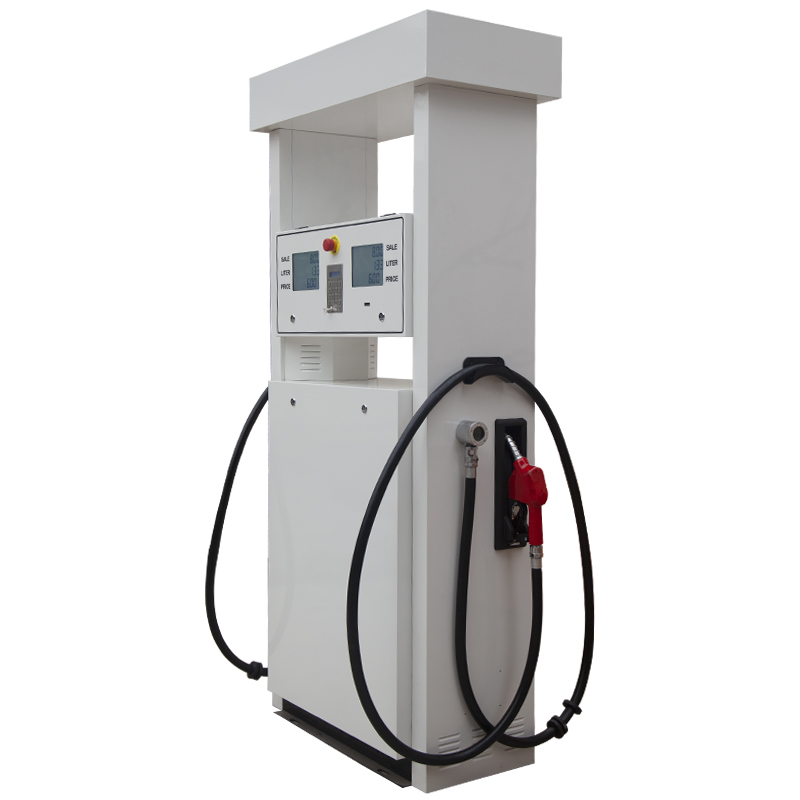

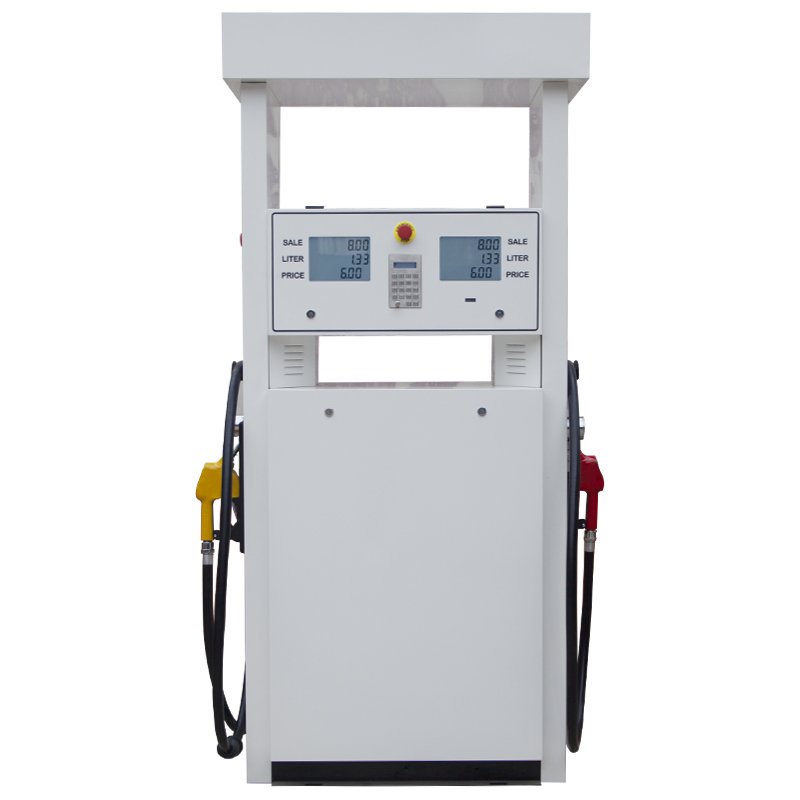

Fuel dispenser with 2 Hoses, can be used for 2 products.

2 x Ex-proof Motor

2 x Tokheim pump
2 x Tokheim Flow meter
2 x Solenoid Valves
4 x LCD Displays
2 x Keypads
Hose and Nozzle size: 3/4"&1"
Diesel flow:5-80L/min

Gasoline flow:5-50L/min

Power: 2.2KW
Voltage: AC220V, 50Hz
Weight: 260kg
Dimensions: 1010*500*2150(mm)

Elite

·The Elite series fuel dispenser is suitable for gas stations, meeting basic fuel supply needs of such venues.

·The Elite series supports customizable logo, enabling it to match your brand identity.

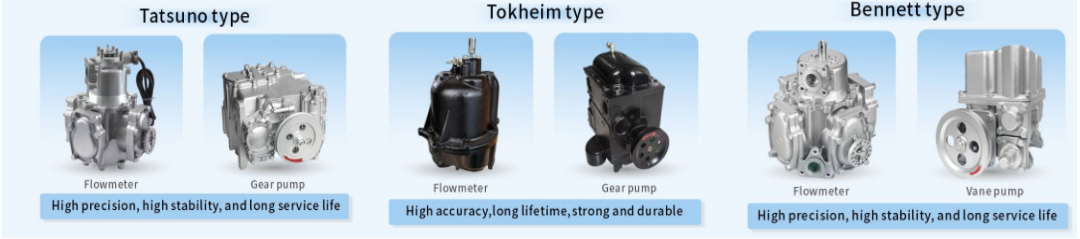

·The Elite series has a voltage of 110V/220V/380V and offers optional Bennett, Tatsuno, Tokheim configurations.

Configuration optional

Model	Nozzle	Product	Pump	Display	Flow Rate
ZH - E1111B	1	1	1	1	5 - 50L/5 - 80L
ZH - E1111G	1	1	1	1	5 - 50L/5 - 80L
ZH - E1111T	1	1	1	1	5 - 50L/5 - 80L
ZH - E2222B	2	2	2	2	5 - 50L/5 - 80L
ZH - E2222G	2	2	2	2	5 - 50L/5 - 80L
ZH - E2222T	2	2	2	2	5 - 50L/5 - 80L

Paramet	Specification	Parameter	Specification
Flow rate	5 - 50L/min, 5 - 80L/min	Temperature range	-25℃ - +55℃
Accuracy	±0.25%	Relative humidity	<95%
Noise	≤80dB(A)	Flow meter	4 PISTON SOFT TYPE
Intake Vaccum	>54KPa	Filter	2 filtration systems
Applicable medium	Gasoline、Diesel fuel, Kerosene.	Power supply	110V/220V(50Hz/60Hz)/380V
Display	Sales 0.00 to 99999.00	Volume	0.00 to 99999.99
Unit price range	0 - 99.99 or 0 - 999.99	Pump	Vane pump/Gear pump/Submersible fuel pump
Motor’s output power	750W or 1100W
