Product Description

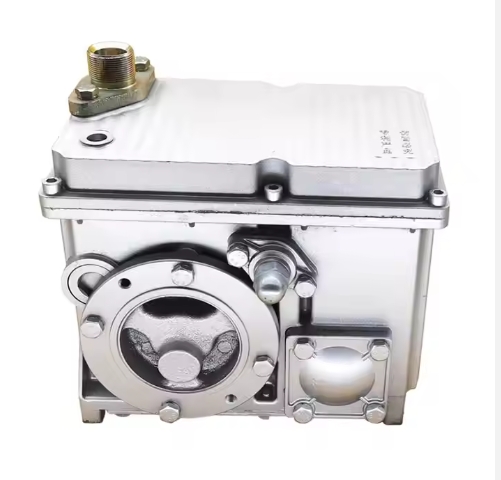

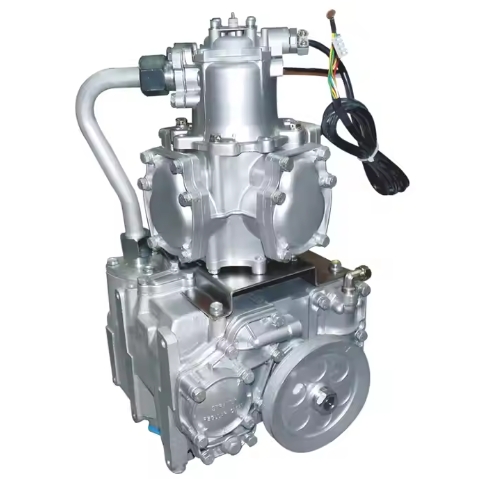

The Flow Meter coverts the flow of petrol sent from the pump to the rotating movement with a crankshaft by means of piston's reciprocating movement for display on the counter. The flow meter can measure the flow of petrol very accurately.
Operation
·Petrol sent from the pump enters the cylinder through the slide valve, pressing the piston at A side inward.
·Then the B side piston is pushed outward and petrol in the cylinder B is sent to C through the slide valve opening and discharged from the nozzle. The pipe and hose are fitted to the discharge port of the flow meter and connected with the nozzle.
·When the four pistons reciprocated alternately, the connecting rods drive the crankshaft, the movement of which is transmitted to the counter.
Features and Benefits
·Specially pretty good piston which provide longer life time and precise accuracy.
·No need to calibrate for working for 2,000,000 Lm.
·Novel appearance, small body, excellent abrasion resistance, accurate measurement and long life & reliable service.
·100% Factory Tested.
Specifications
| Technical Specifications |
|
| Working Pressure | 0.12 - 0.35Mpa |
| Temperature | -25°C to 55°C |
| Flow Rate | 5 - 100L/m |
| Measurement Accuracy | ±0.2% or better |
| Repeat Variation | ≤0.1% |
| Discharge rate per revolution | 0.5L |
| Rotary Direction of Axial | Clockwise |
| Working Life | ≈10000000L |
| Dimension | 215mm×234mm×240mm |
| Net Weight | About 6KG |
